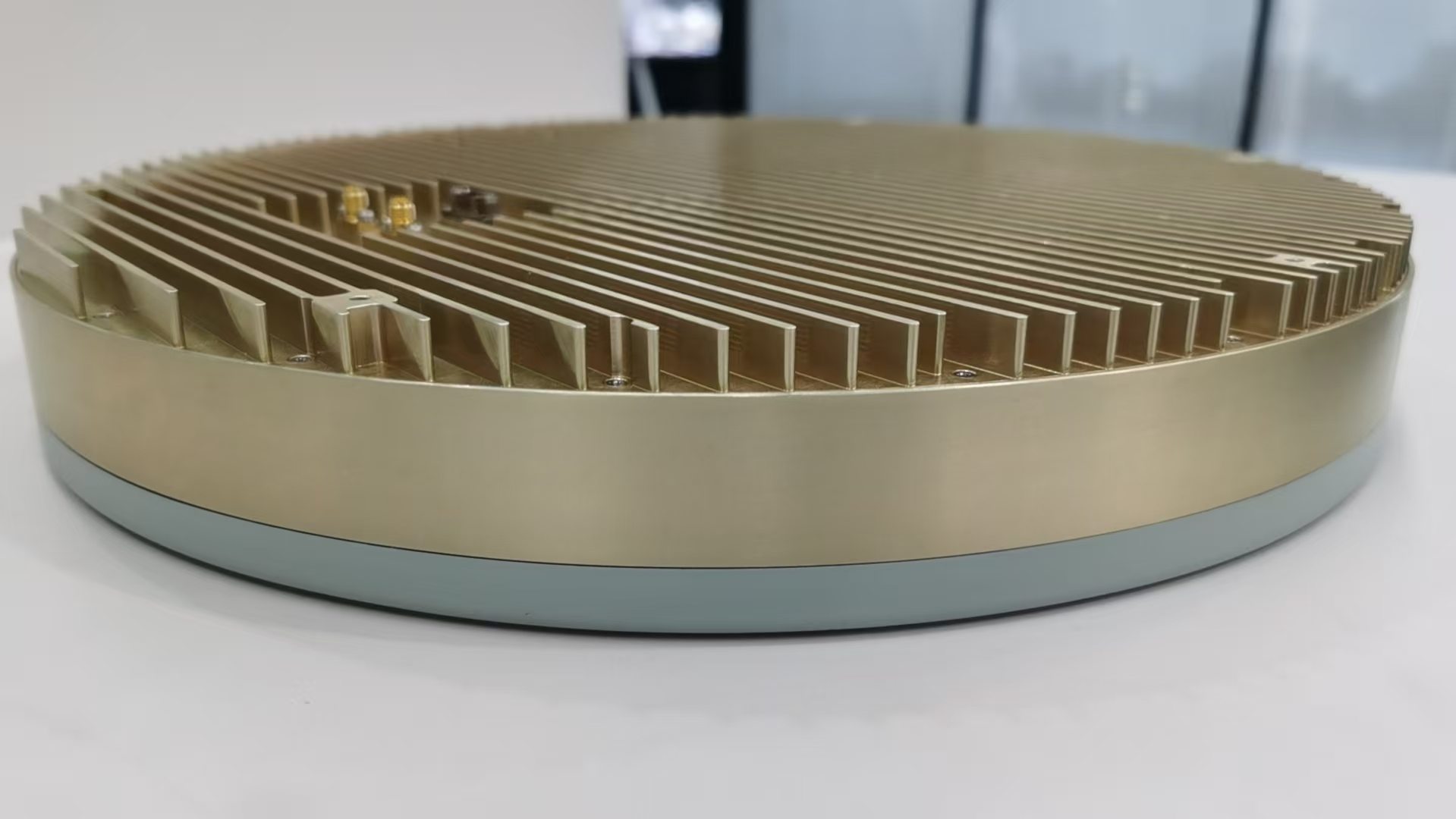

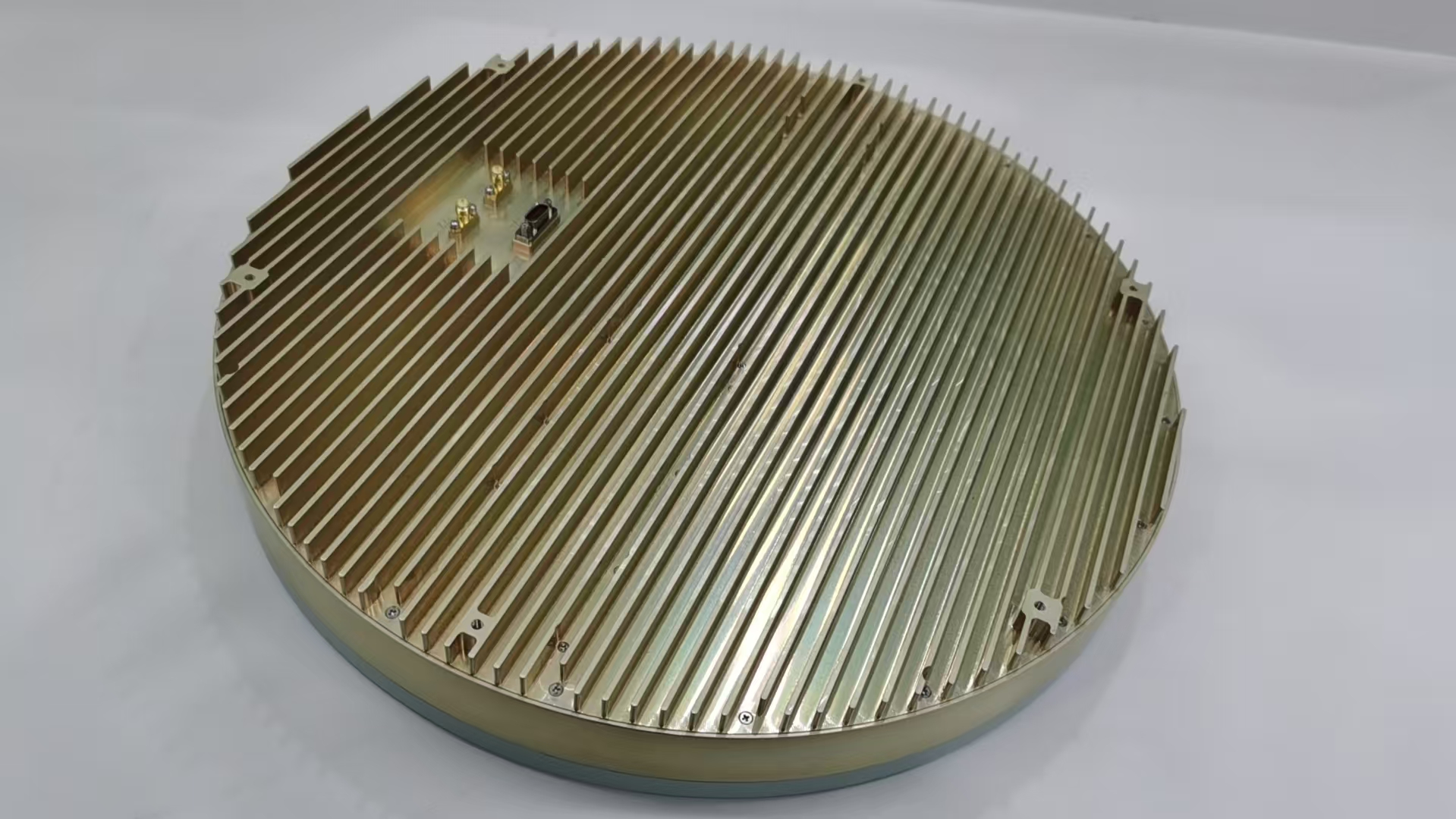

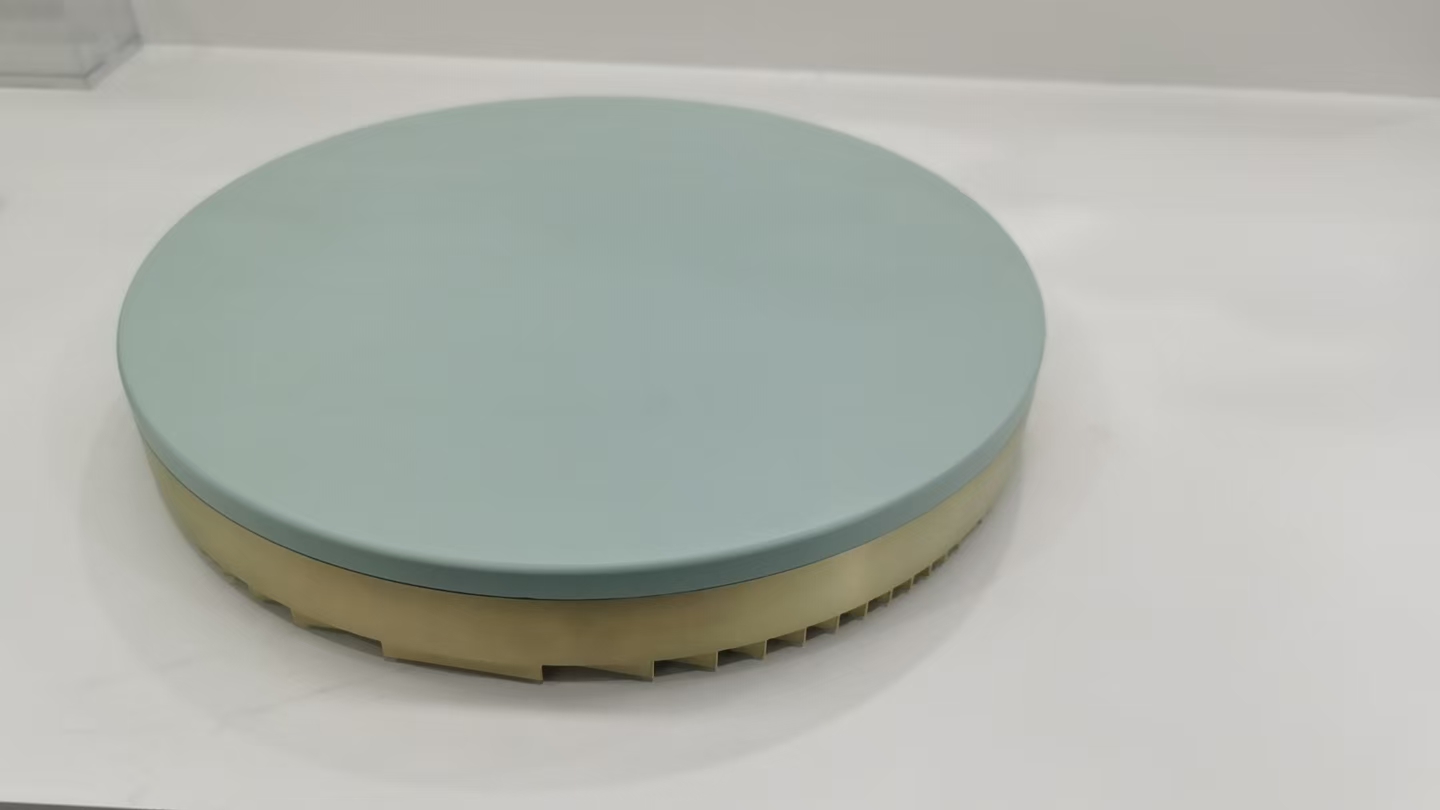

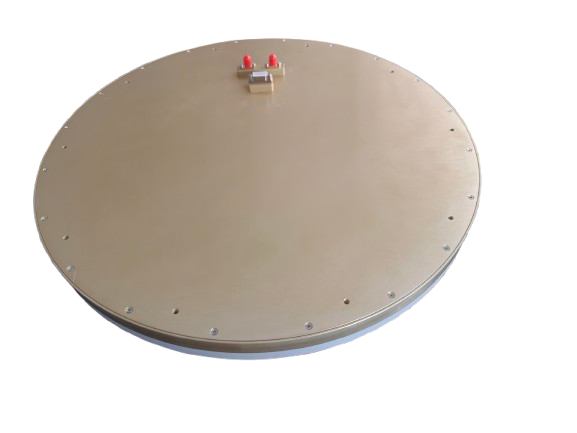

INFOX 16-Array UAV Dual-Resistant Antenna Terminal

PRODUCT CODE:TX2512-AJS-16CH-DPA

Model: TX2512-AJS-16CH-DPA is a satellite navigation anti-interference terminal designed for industrial user needs. It supports BDS-B1i and GPS-L1 frequencies, featuring anti-suppression interference capability (maximum 15 jammers) and anti-spoofing capability. Internally integrated with an antenna array, anti-interference components, and a satellite navigation receiver, it serves reliable navigation fields such as UAVs (Unmanned Aerial Vehicles) and unmanned vehicles. It protects user terminals from various unintentional interferences and malicious attacks, significantly improving the security of PNT information.

+8618437938022

E-mail

jack@infoxantijamming.com

Now Inquiry

File Download

Please submit a message first

Specifications

Operating Frequency	BDS-B1：1561.098 MHz±2.046MHz GPS-L1：1575.42MHz±2.046MHz
Anti-interference Performance	ISR:single ≥120dB; seven ≥105dB; fifteen ≥95dB.
Anti-Spoofing Performance	Residual spoofing signal CN0 (Carrier-to-Noise Ratio) ≤ 20 dB.
Positioning Accuracy	No interference: Horizontal ≤1.5 m (95%), Vertical ≤1.5 m (95%) With interference: Horizontal ≤10 m (95%), Vertical ≤10 m (95%)
Dimensions	Φ370mm×28.7mm
Power Consumption	≤40W (at ambient temperature)
Weight	≤2.6kg

Production Display
