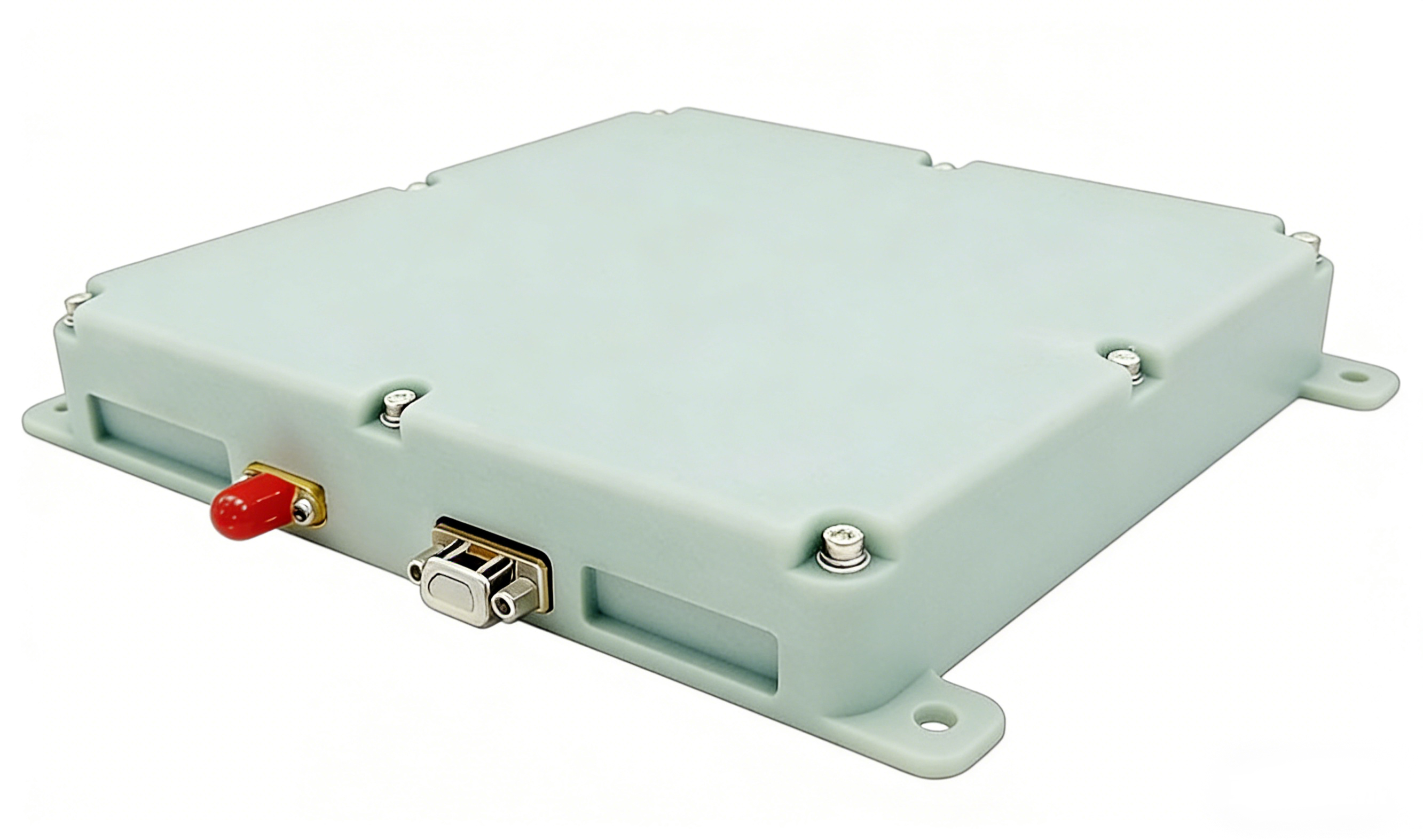

8-Element Satellite Navigation Anti-Jamming Integrated Device
PRODUCT CODE:TX-8AT-FULL-KGR-34V
This is a miniaturized satellite navigation anti-jamming integrated device designed for industry users such as unmanned aerial vehicles (UAVs). It supports signal reception of GPS + GLONASS multi-systems and features simultaneous anti-barrage jamming capability across multiple systems, with a maximum anti-jamming capacity of 7 interference sources. Integrating an antenna array, anti-jamming module and satellite navigation receiver internally, it boasts the advantages of miniaturization, lightweight design and low cost.
Please submit a message first
Specifications
| Operating Frequency | GPS-L1: 1575. 42MHz GL0-G1: 1602MHz |
| Max Anti-Jamming Channels | 7 channels |
| Anti-interference capability | ISR: Single≥110dB; Three≥100dB； Seven≥90dB； |
| Positioning Accuracy | ≤10m |
| Speed Measurement Accuracy | ≤0.2m/s |
| Timing Accuracy | ≤100ns |
| Working Voltage | 8~34V |
| Power Consumption | ≤19W |
| Overall Dimensions | 150×150×22.5mm |
| Net Weight | ≤720g |
| Operating Temperature | -40℃～+55℃ |
| Storage Temperature | -55℃～+70℃ |
| Anti-continuous Wave Power | ≥10W |

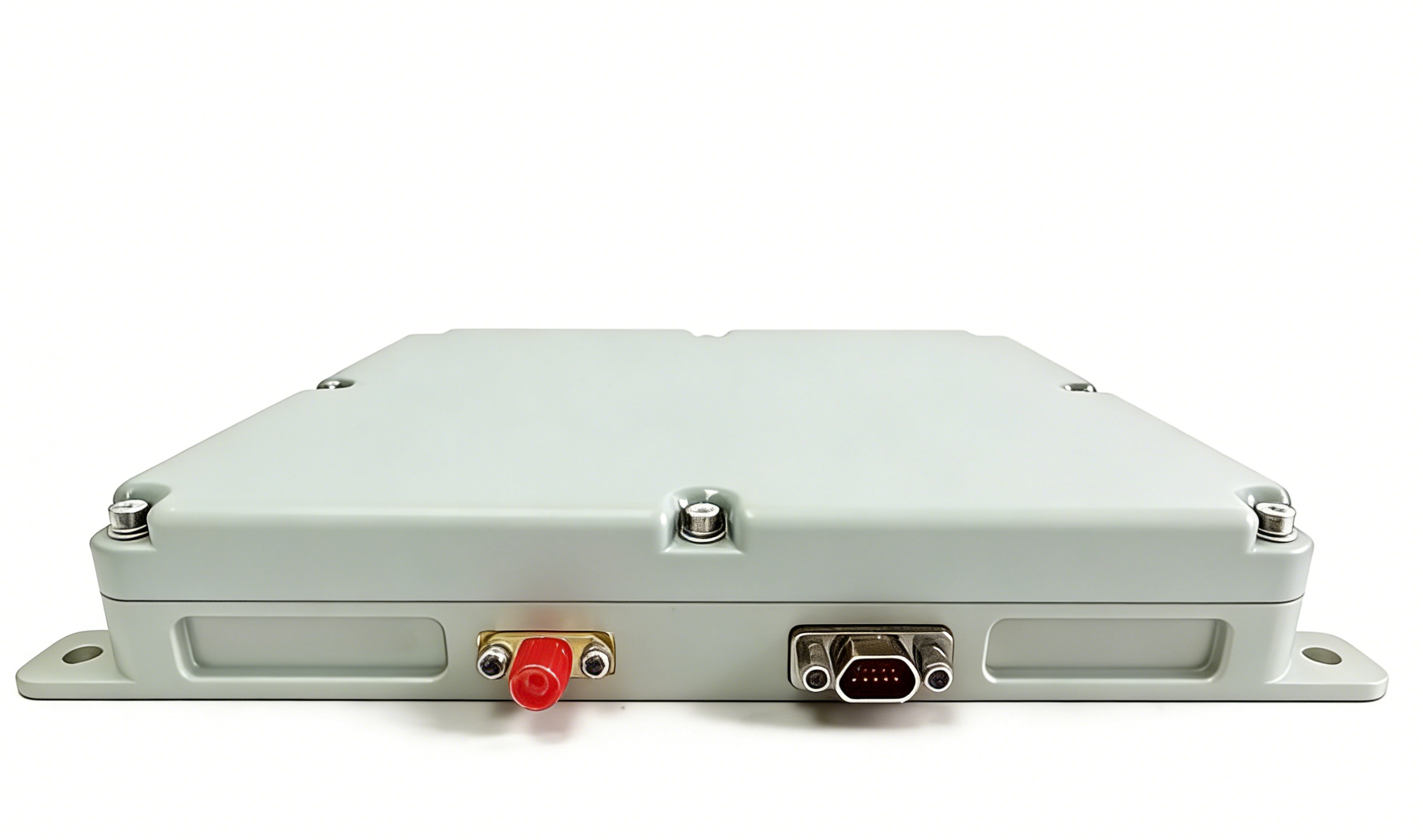

Production Display
