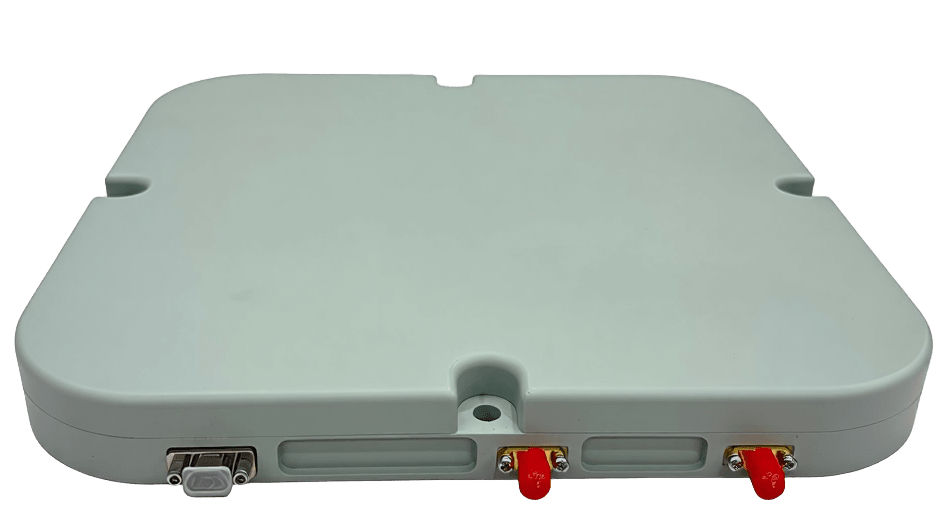

16-Element Dual-Band GNSS CRPA Anti-Jamming Antenna

PRODUCT CODE：TX2613-16A-SNB

TX2613-16A-SNB is a 16-element dual-band integrated GNSS CRPA anti-jamming terminal with built-in high-precision GNSS receiver. It suppresses narrowband, broadband, pulse, swept-frequency and Gaussian blanket jamming, supports serial firmware upgrade, self-check, overvoltage & reverse connection protection. Dual output modes (TTL serial / SMA RF) are available, compatible with UAV flight controllers, widely used for anti-jamming navigation of UAVs, unmanned vehicles, vessels and secure timing for power, communication & finance.

+8618437938022

E-mail

jack@infoxantijamming.com

Now Inquiry

File Download

Please submit a message first

Specifications

Operating Frequency	L1/E1/B1c: 1575.42MHz±2.046MHz L5: 1176.45MHz±2.046MHz
Anti-interference Performance	ISR: single ≥120dB; seven ≥105dB; fifteen ≥95dB. Max 15 jamming sources per band
Positioning Accuracy	No interference: Horizontal ≤1.5 m (95%), Vertical ≤1.5 m (95%) With interference: Horizontal ≤10 m (95%), Vertical ≤10 m (95%)
Speed Measurement Accuracy	≤0.2 m/s (95%)
Timing Accuracy	≤100ns (95%)
Operating Voltage	Input voltage 12~32V DC, recommended 28V DC
Power Consumption	≤75W
Overall Dimensions	350mm×350mm×35mm
Weight	≤5000g
Operating Temperature	-40℃ ~ +55℃
Rain Resistance	Meet the rain test requirements of GJB150A
Supported GNSS Signals	BDS B1c, GPS L1, GPS L5, Galileo E1
RF Index	In-band gain ≥28dB, VSWR ≤1.5:1, RF output -70~-60dBm, CW anti-burn ≥10W
Output Protocol	NMEA 0183 (Built-in UM980 receiver)

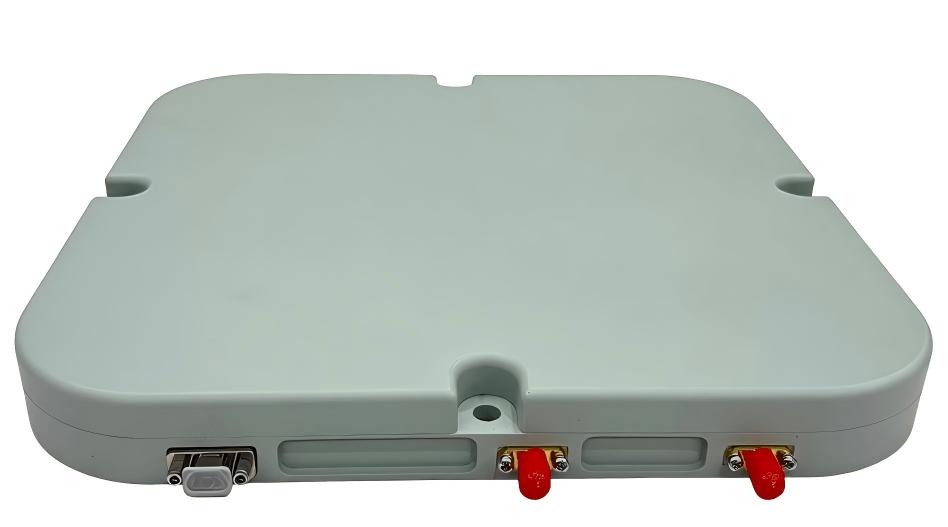

Production Display
