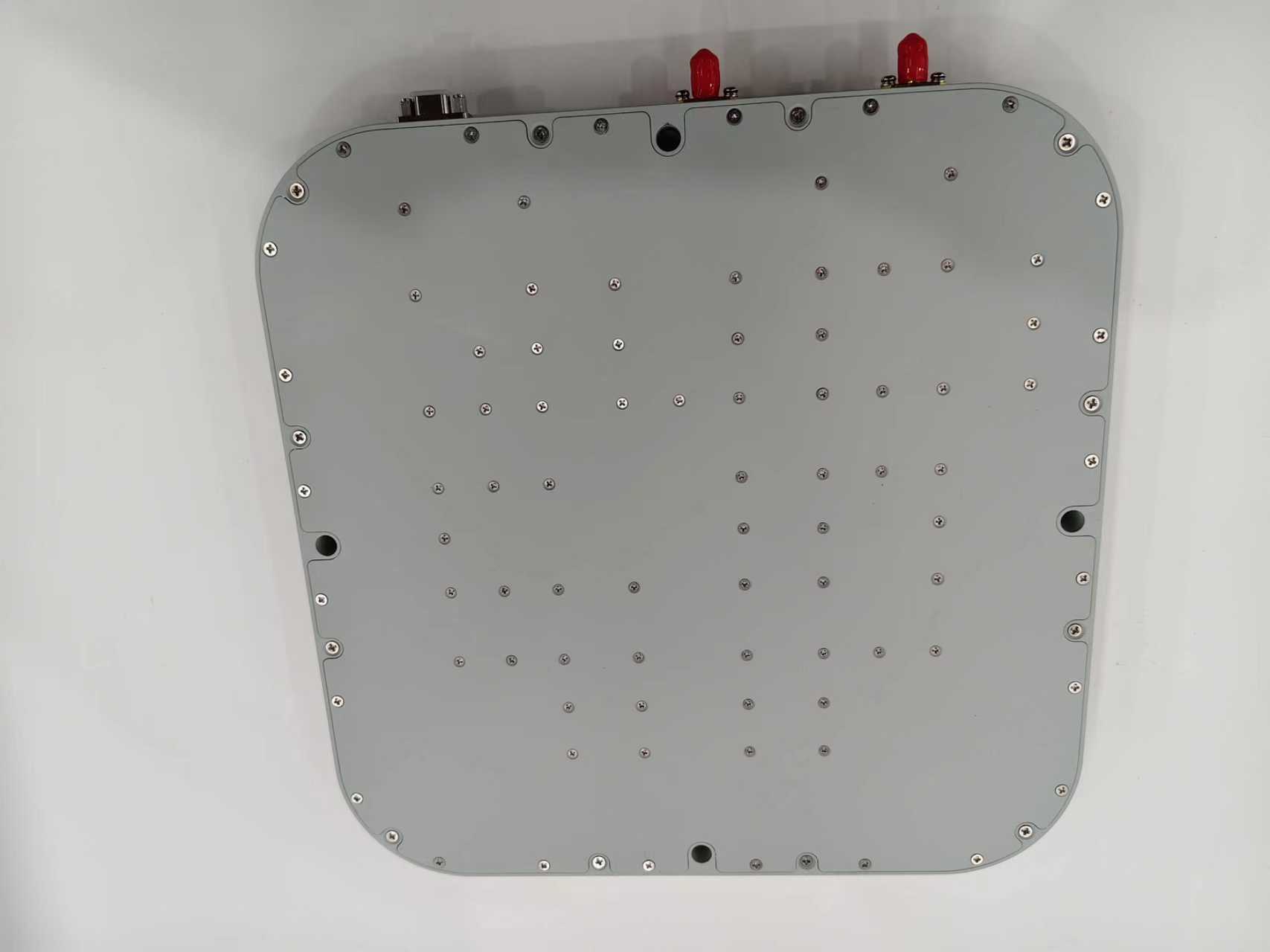

16-Element Anti-jamming Terminal
PRODUCT CODE:TX2511-16A-SNB
The TX2511-16A-SNB antenna is a satellite navigation anti-jamming receiver developed to
meet the needs of industry users. It supports anti-suppression jamming capabilities for GPS-L1, GAL-E1 and BDS-B1, with a maximum of 15 jamming signals that can be resisted per frequency
point. In addition, the antenna has a built-in receiver and features high integration, high
performance and high precision.
Please submit a message first
Specifications
| Anti-jamming Performance | ISR：Single≥100dB； Seven≥85dB; Fifteen≥70dB； |
| Anti-Jamming Function | Equipped with anti-jamming function for BDS-B1 and GPS-L1 frequencies, capable of suppressing suppressive jamming such as narrowband jamming, wideband jamming, pulse jamming, frequency sweep jamming, and Gaussian jamming. |
| Positioning Accuracy | No jamming: Horizontal ≤1.5 m (95%), Vertical ≤1.5 m (95%) With jamming: Horizontal ≤10 m (95%), Vertical ≤10 m (95%) |
| Speed Measurement Accuracy | ≤0.2 m/s (95%) |
| Timing Accuracy | ≤100ns（95%） |
| Operating Voltage | Input voltage 12~32V |
| Power Consumption | ≤25W |
| Overall Dimensions | 230mmX230mmX24mm |
| Weight | ≤1250g |
| Operating Temperature: | -40℃～+55℃ |
| Rain Resistance: | Meet the rain test requirements of GJB150A |
